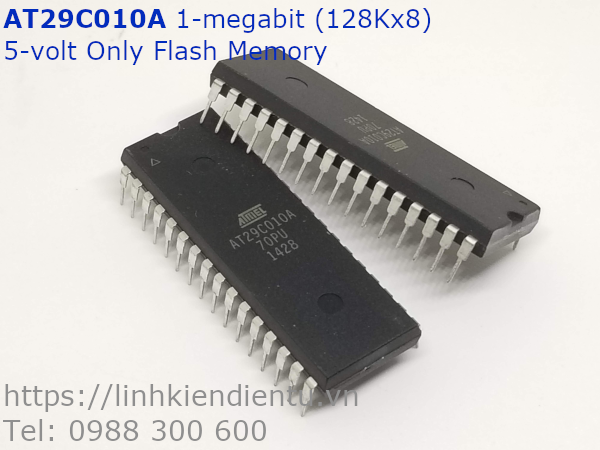

AT29C010A-70PU 1-megabit (128Kx8) 5-volt Only Flash Memory

Datasheet  M29C010A

Features

• Fast Read Access Time – 70 ns

• 5-volt Only Reprogramming

• Sector Program Operation

– Single Cycle Reprogram (Erase and Program)

– 1024 Sectors (128 Bytes/sector)

– Internal Address and Data Latches for 128 Bytes

• Two 8K Bytes Boot Blocks with Lockout

• Internal Program Control and Timer

• Hardware and Software Data Protection

• Fast Sector Program Cycle Time – 10 ms

• DATA Polling for End of Program Detection

• Low Power Dissipation

– 50 mA Active Current

– 100 µA CMOS Standby Current

• Typical Endurance > 10,000 Cycles

• Single 5V ± 10% Supply

• CMOS and TTL Compatible Inputs and Outputs

• Commercial and Industrial Temperature Ranges
